Vertical Rotary Tiller
Ask For Price
- With the blades vertical to the soil, Vertical Rotary Tiller makes a circular rotational motion to break up the clods on the soil, swells the soil surface and expands the inner surface of the soil. In addition, it operates by mixing the soil without turning it upside down, and the moisture balance is maintained as the soil surface is homogeneously dispersed during operation.
- It allows the stubble remaining on the soil surface after harvest to break up and mix with the soil easily.
- The blades are produced from special steel subjected to hot rolling, thus high wear resistance is achieved.
- Thanks to the specially designed gearbox(1000 rpm) and the different positions of the rotors, it allows the blades to penetrate the soil slowly even in heavy and compacted soils, thus minimizing power consumption and vibrations.
- Thanks to the spring bearings of the side protection, it increases the lateral movement of the bands.
- There are protective chambers that prevent any obstacles such as soil clods, stones, plant residues, hoses from entering the gap between the rotor shafts.
- Working depth of vertical rotary tillers provides a fixed working depth thanks to the height-adjustable roller.
- Locally produced, robust, powerful and high-performance vertical rotary tillers are suitable for all kinds of tractor power with different working width options.

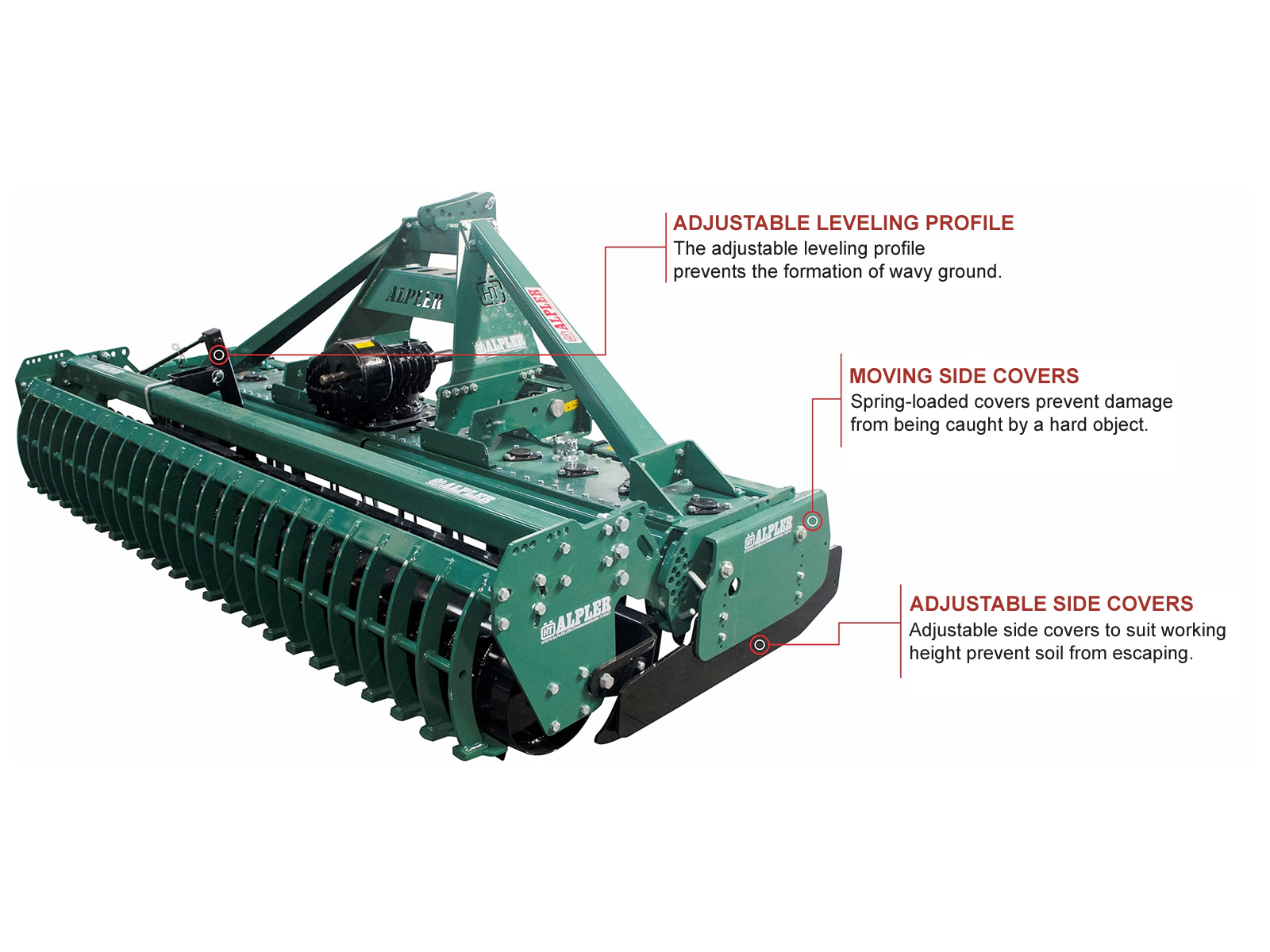

ADJUSTABLE LEVELING PROFILE: With the adjustable leveling profile, the formation of undulating ground is prevented.
MOVABLE SIDE COVERS: Spring-loaded covers to prevent damage from a hard object jamming.
ADJUSTABLE SIDE COVERS: Thanks to the side covers that can be adjusted according to the working height, the soil does not leak out.

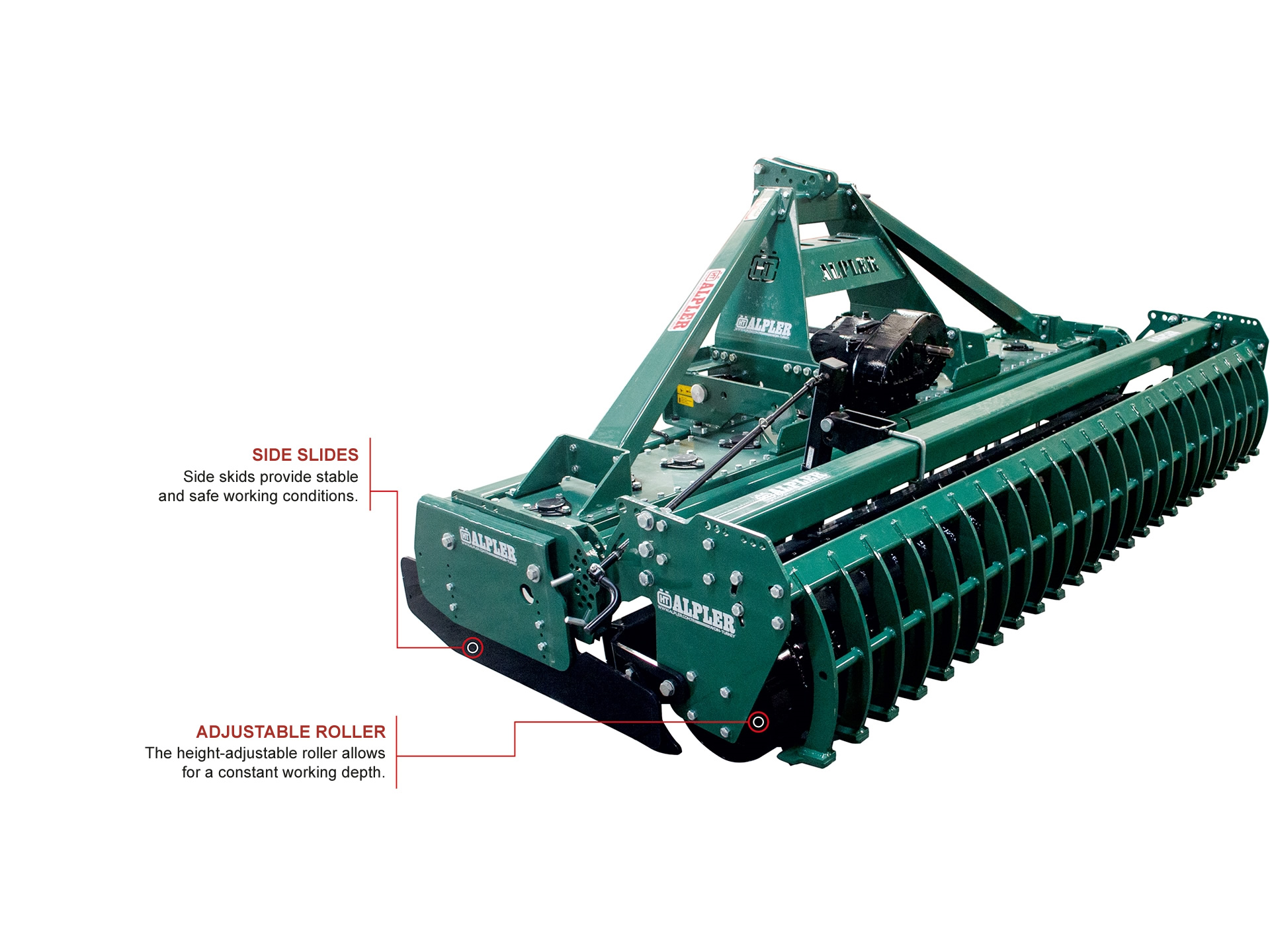

SIDE SLIDES: Balanced and safe working possibility thanks to the side slides.
ADJUSTABLE ROLLER: Possibility to work at a fixed working depth thanks to the height-adjustable roller.
| MODEL | RTD 250 | RTD 300 | RTD 350 | RTD 400 |
|---|---|---|---|---|
| Working Width (mm) | 2500 | 3000 | 3500 | 4000 |
| Working Depth (mm) | 240-280 | 240-280 | 240-280 | 240-280 |
| Overall Width (mm) | 2600 | 3100 | 3600 | 4100 |
| Overall Lenght (mm) | 1450 | 1450 | 1450 | 1450 |
| Overall Height (mm) | 1300 | 1300 | 1300 | 1300 |
| Number of Blades | 20 | 24 | 28 | 32 |
| Weight (kg) | 1205 | 1410 | 1535 | 1675 |
| P.T.O. Shaft Rotations (D/Min) | 540 | 540 | 540 | 540 |
| Power Requirement (HP) | 80-100 | 100-120 | 120-140 | 140-160 |
