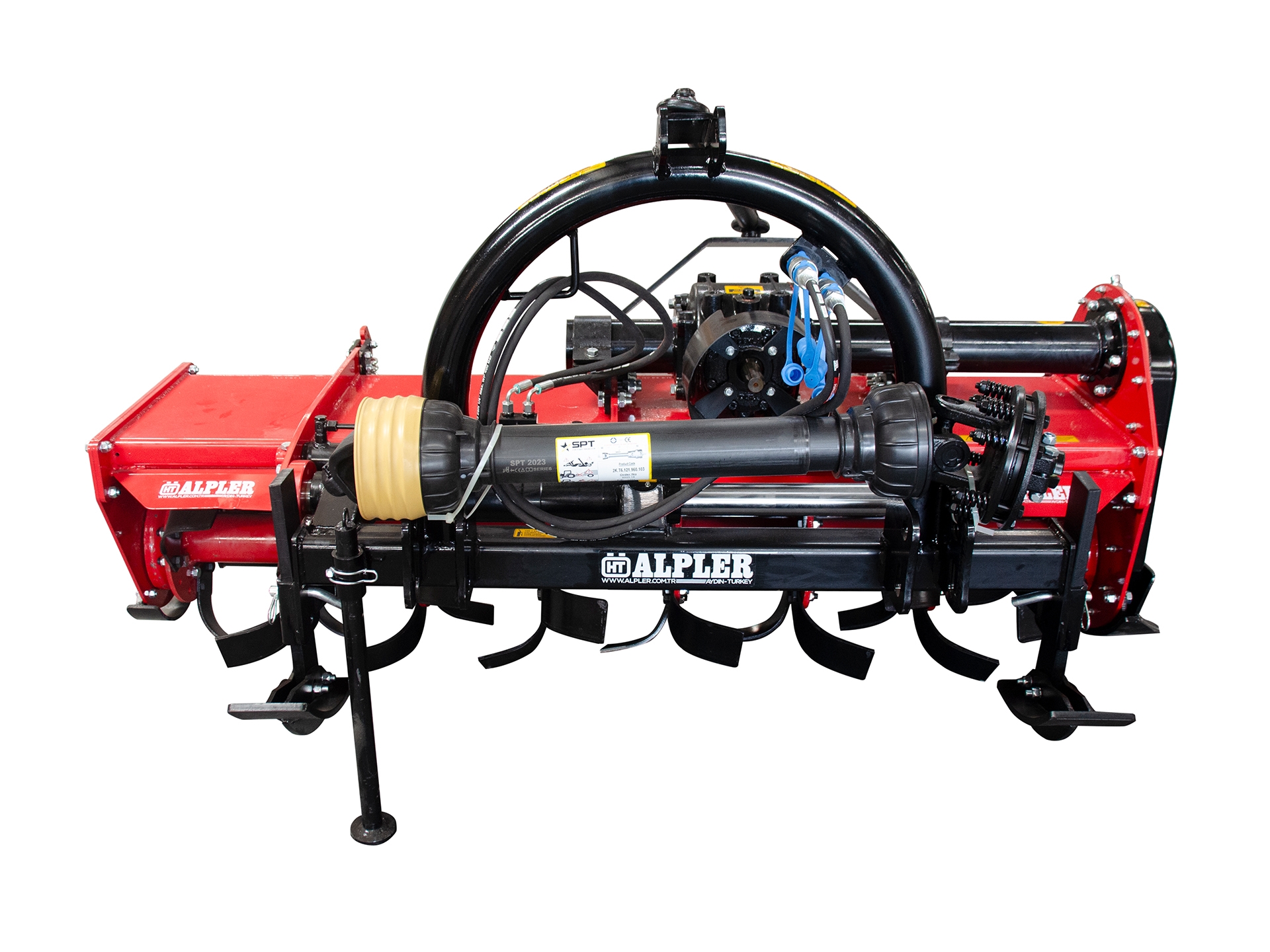

Garden Type Side Shifting Rotary Tiller
Ask For Price

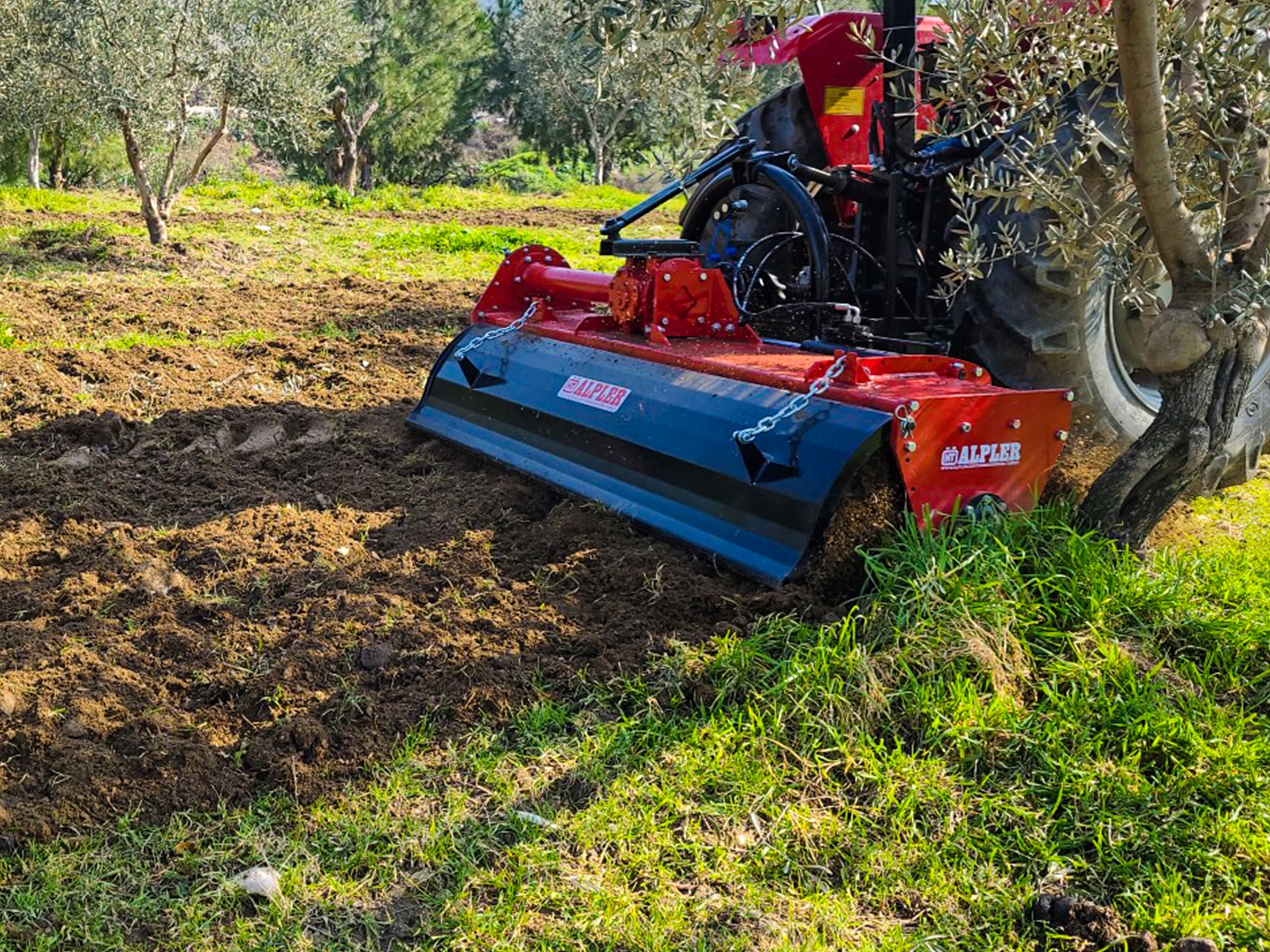

- In orchards, greenhouses and vineyards, mixes plant residues and organic fertilizer with efficient hoeing for the preparation of the seedling planting bed thus increasing humus in soil.
- By destroying weeds mechanically, there is no need for the use of chemicals in weed control.
- Thanks to its special and durable blades, provides a long-lasting and economical use.
- Thanks to the special inclined rear cover, the clods thrown from the blades are broken up and, thanks to the special form of the cover, it tilts allowing the soil to mix and the air-water balance to be optimal.
- Thanks to its shaft with safety mechanism, when encountering stones, roots etc. the damage to the machine and tractor is prevented.
- Provides the most efficient shredding and mixing with its fixed speed gearbox.
- With its hydraulic shifting mechanism, can easily approach tree bases and fence edges, providing efficient and safe operation.
| MODEL | T-MKR 1400 | T-MKR 1600 | T-MKR 1850 | T-MKR 2100 | A-HKR 160 | A-HKR 185 | A-HKR 210 | A-HKR 240 |
|---|---|---|---|---|---|---|---|---|
| Working width (mm) | 1260 | 1514 | 1768 | 2022 | 1526 | 1776 | 2030 | 2280 |
| Working depth (mm) | 190 | 190 | 190 | 190 | 200 | 200 | 200 | 200 |
| Overall width (mm) | 1516 | 1770 | 2024 | 2278 | 1775 | 2025 | 2275 | 2525 |
| Overall length (mm) | 850 | 850 | 850 | 850 | 1100 | 1100 | 1100 | 1100 |
| Overall height (mm) | 1050 | 1050 | 1050 | 1050 | 1250 | 1250 | 1250 | 1250 |
| Number of flanges | 6 (5 OPT.) | 7 (6 OPT.) | 8 (7 OPT.) | 9 (8 OPT.) | 7 (6 OPT.) | 8 (7 OPT.) | 9 (8 OPT.) | 10 (9 OPT.) |
| Number of horizontal blades | 30 | 36 | 42 | 48 | 36 | 42 | 48 | 54 |
| Number of vertical blades (Optional) | 36 | 44 | 52 | 60 | ||||
| Machine Weight (kg) | 395 | 415 | 450 | 480 | 500 | 540 | 580 | 620 |
| P.T.O. Shaft Rotations (max) (min-l) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Required Tractor Power (HP) | 30-35 | 35-40 | 40-45 | 45-50 | 35-40 | 40-45 | 45-50 | 55-60 |
| Machine Code (Order number) | 20201105 | 20201209 | 20201313 | 20201417 |
